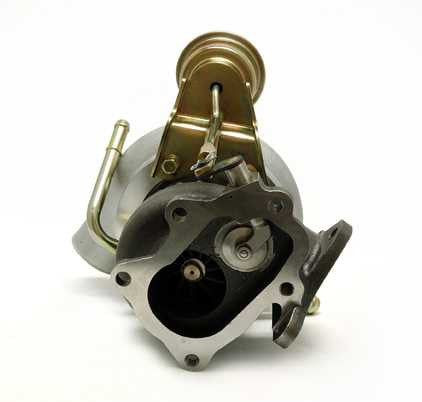

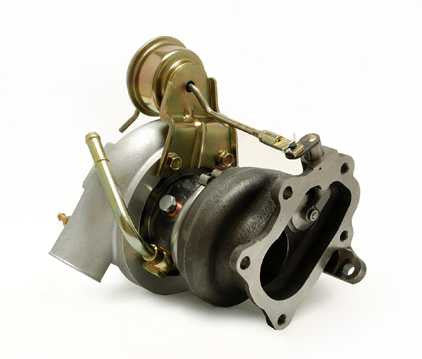

Tomioka Racing TR TD06-20G w/ 3 Inlet Turbo for Subaru WRX 2002-2007 and STI 2002-2008

Tomioka Racing TR TD06-20G w/ 3 Inlet Turbo for Subaru WRX 2002-2007 and STI 2002-2008

SKU TR-TS1003
by Tomioka Racing
Save $ 27.00 Save $ 27.00
$ 1,350.00
$ 1,350.00 - $ 1,350.00
$ 1,350.00
$ 1,323.00
$ 1,323.00 - $ 1,323.00
$ 1,323.00

Looking to put out some high end power? Take a look at the TR TD06-20G Turbo, this turbo features a 3-inch Inlet allowing higher air flow than the standard 2.4-inch Inlet on the factory size turbo. This turbo comes with a heavy duty internal wastegate ready to make high end power! Please note in order to install this turbo you will have to get a 2.4 to 3 inch reducer inlet coupler and install TGV deletes to clear the manifold.

Model Number: TR-TS1003
Application: Subaru GDA-GDB WRX/STI 2002-2008, GC8 1998-2001, Forester SG5 2005-2007

Compressor
Wheel Diamter: 59.0 / 76mm
CFM: 750

Turbo
Max HP: 460
Journal Bearing
Flange: STD Subaru 5 Bolt
Actuator: 0.8 BAR/12 PSI

Turbine
Turbine Housing Size: 8cm
Wheel Diameter: 54 / 61mm
