Tomioka Racing Race Flux Coilover for Subaru BRZ / Scion FRS 13+

SKU TR-SC1000
Sold out
Original price $ 1,399.00
Original price $ 1,399.00 - Original price $ 1,399.00
Original price $ 1,399.00
Current price
$ 1,371.02
$ 1,371.02 - $ 1,371.02
Current price
$ 1,371.02





BLACK FRIDAY SALE 35% OFF 11/23/16~11/28/16

NOT ELIGIBLE FOR ADDITIONAL COUPON DISCOUNTS

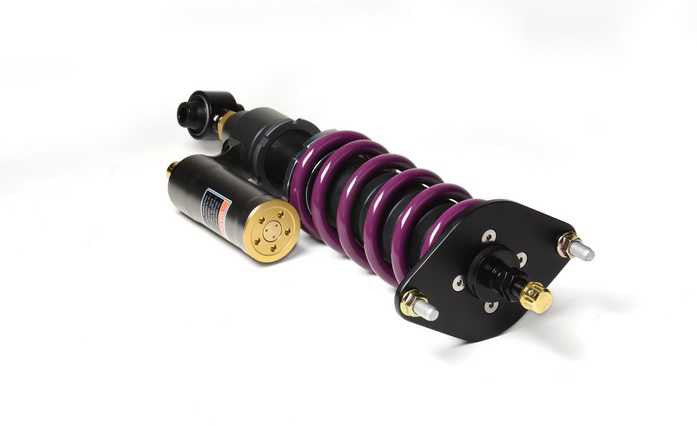

Tomioka Racing Race coilover is specially designed for customers

who demand better handling car when going to track and also require

daily driving capability. The Race coilover features front inverted

1-way adjustable and rear 2-way adjustable rebound and compression with

external reservoirs. It also combines the compression force in the high

and low speed range to achieve the most efficient compression. The

15-level rebound and 10-level compression adjustments offer driver from

comfortable to tighter ride with superior road gripping characteristic.

All Tomioka Racing coilover includes high quality aluminum pillowball

upper plate and rebuildable with 18-months limited warranty.

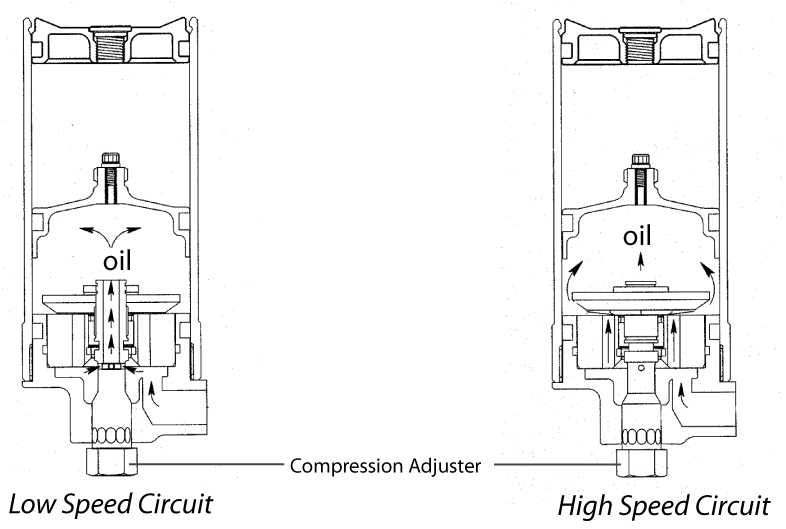

Compression Adjuster Circuit



Major components of the compression adjustment circuit are the slow

bleed orifice, piston and shim cage. All these components work in

conjunction to achieve the low and high speed compression on the race

coilover. At low speed compression, the damper fluid is monitored

through the slow bleed orifice in which pressure loss across the

orifice results in opposing damping force. During high speed

compression where the damping fluid travels at higher velocity, the

slow bleed orifice creates too much resistance for the fluid. The extra

force generated from the high speed fluid is handled by the piston and

shim cage while still monitored by the slow-bleed orifice. The piston

and shim cage virtually bypass the orifice during high-

speed compression.

Product Highlights

Two-Way Rear Adjustable

Inverted One-Way Front Adjustable

10-Level Compression Adjustment

15-Level Rebound Adjustment

Ride Height Adjustable

Front Camber Adjustable

8kgmm / 6kgmm Spring Rate



Kit Contents

Coilover x 4

Spanner Wrench x 1



Application

Subaru BRZ 2013+

Scion FRS 2013+
