TOMIOKA RACING HYBRID TD05-GT30 TURBO FOR WRX 02-07/STI 04-15

SKU TR-TS1032
Save $ 39.90 Save $ 39.90
Original price $ 1,995.00
Original price $ 1,995.00 - Original price $ 1,995.00
Original price $ 1,995.00
Current price
$ 1,955.10
$ 1,955.10 - $ 1,955.10
Current price
$ 1,955.10

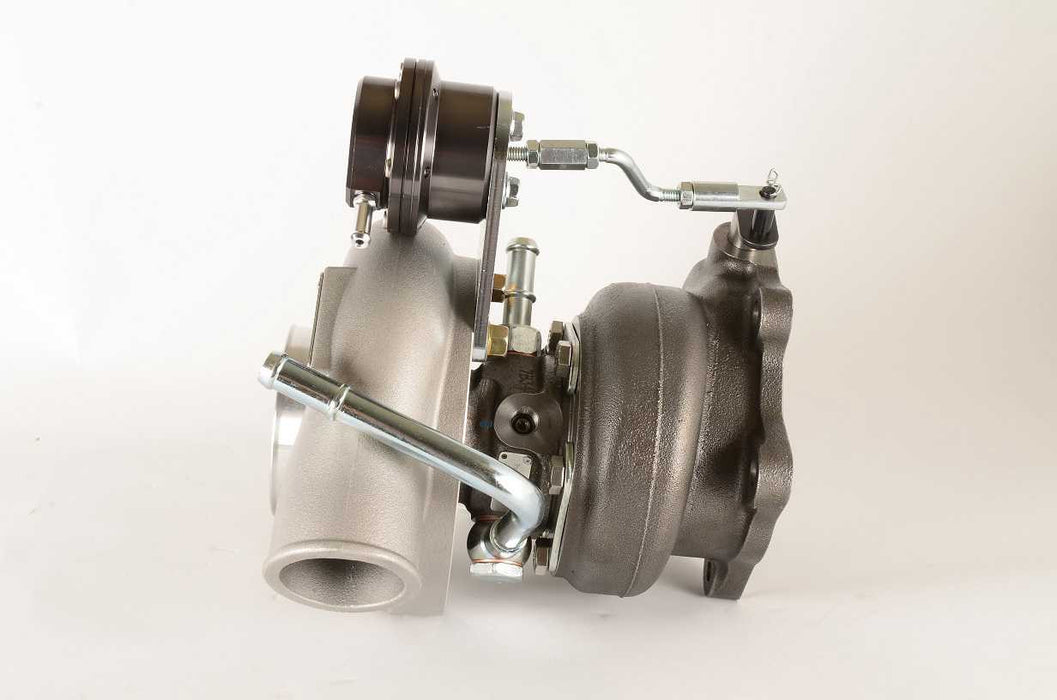

Combination of TD05 housing and ball bearing CHRA results in the Tomioka Racing Hybrid TD05-GT Ball Bearing turbocharger. Using genuine Garret Ball Bearing technology and our own billet compressor wheel, we have achieved a stock location Hybrid TD05-GT30 turbo. Armed with billet compressor wheel in GT30 size and 3-inch compressor inlet, this turbo is designed to achieve top end power. Each Turbo comes with billet wastegate actuator with 1.3 bar actuator spring. This hybrid TD05-GT turbo is designed for smooth spool all the way to the redline. All necessary fittings and gaskets are included in this turbo.

Note: This turbo requires TGV deletes to be used and 3-Inch turbo inlet. An external wastegate is recommended.



Turbo Characteristics:

Bearing Type: Ball Bearing
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel In: 57 mm
Ex: 76 mm

Turbine Wheel

In: 60 mm
Ex: 55 mm
Actuator: 1.3 Bar / 19 psi
Turbine Housing: 10 cm2
Max. Power: 580 HP



Features

• Genuine Garrett Ball Bearing
• Billet Compressor Wheel
• Billet Wastegate Actuator
• Stock Location

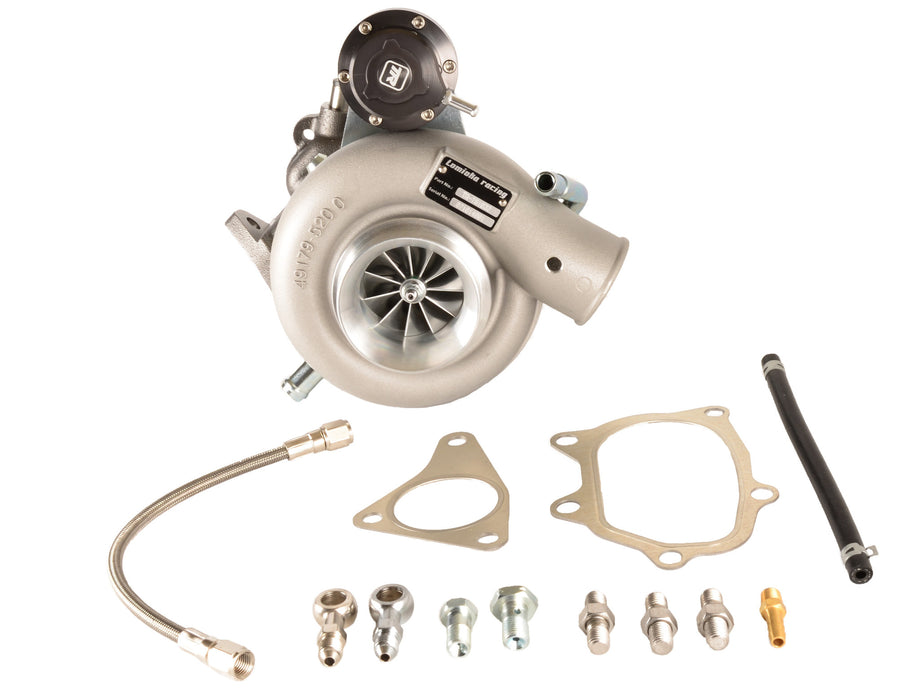

Kit Contents
• Turbocharger
• Actuator
• Oil Pipe
• Water Pipe
• Gaskets
• Hardware kits
