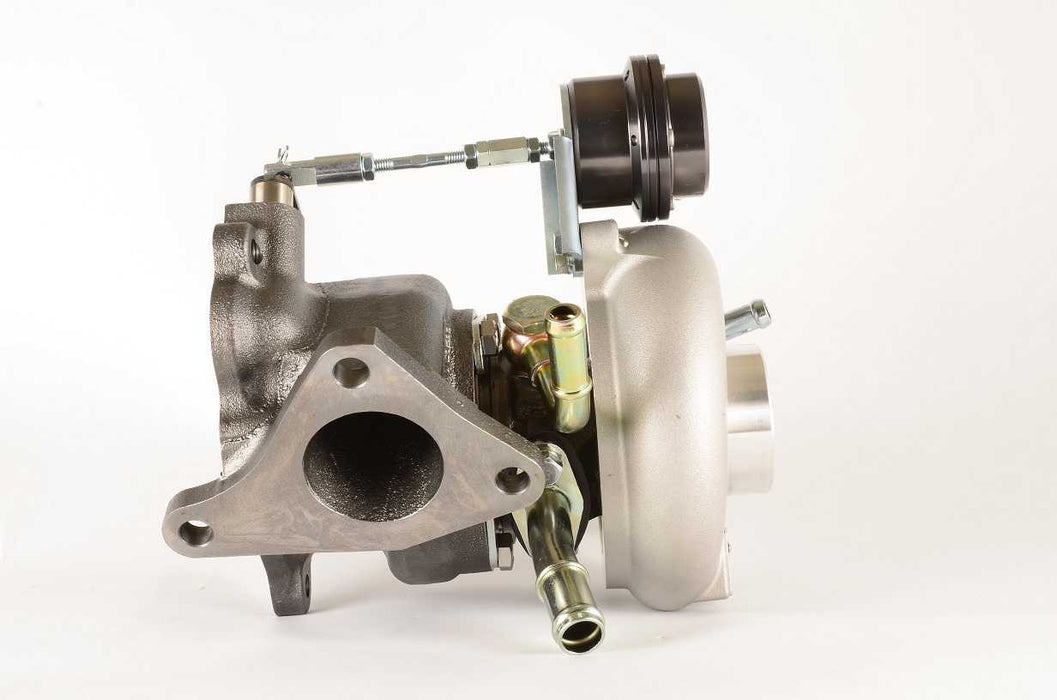

TOMIOKA RACING HYBRID TD05-GT28 TURBO SUBARU WRX 02-07/STI 04-15

SKU TR-TS1028
Save $ 33.90 Save $ 33.90
Original price $ 1,695.00
Original price $ 1,695.00 - Original price $ 1,695.00
Original price $ 1,695.00
Current price
$ 1,661.10
$ 1,661.10 - $ 1,661.10
Current price
$ 1,661.10

Combination of TD05 housing and ball bearing CHRA results in the Tomioka Racing Hybrid TD05-GT Ball Bearing turbocharger. Using Ball Bearing technology and our own billet compressor wheel, we have achieved a stock location medium frame ball bearing turbocharger for the Subaru WRX/STi. The Hybrid TD05-GT28 turbo is perfect for those who are looking for quick spooling turbo for the Subaru EJ boxer engine. Each Turbo comes with billet wastegate actuator with 1.3 bar actuator spring. This hybrid TD05-GT turbo is designed for smooth spool to the redline. All necessary fittings and gaskets are included in this turbo.



Turbo Characteristics:

Bearing Type: Ball Bearing
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel In: 53.9 mm
Ex: 71 mm

Turbine Wheel

In: 53.9 mm
Ex: 76 mm
Actuator: 1.3 Bar / 19 psi
Turbine Housing: 8 cm2
Max. Power: 480 HP



Features

• Ball Bearing
• Billet Compressor Wheel
• Billet Wastegate Actuator
• Stock Location

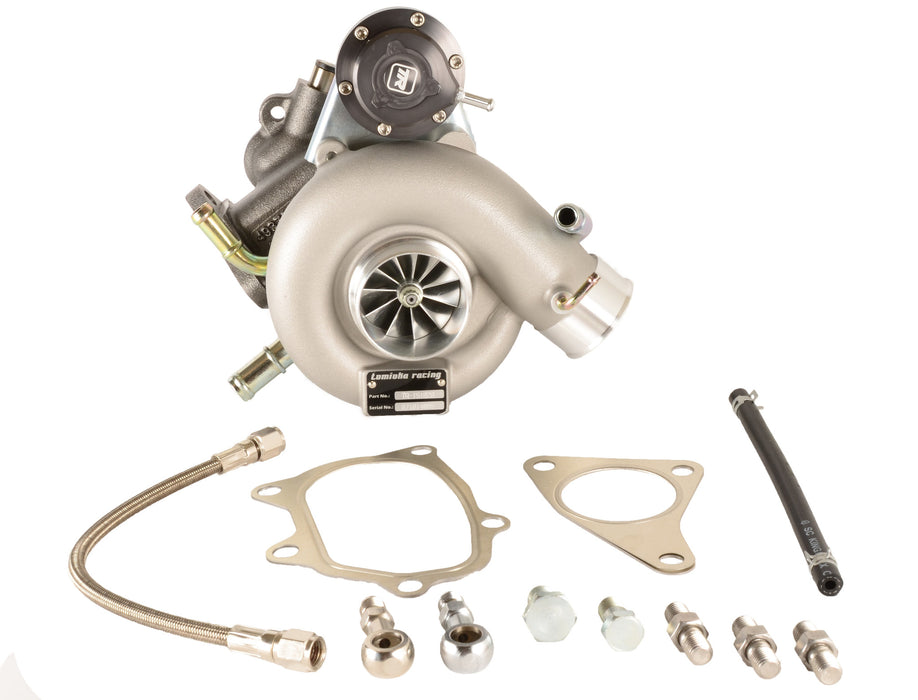

Kit Contents
• Turbocharger
• Actuator
• Oil Pipe
• Water Pipe
• Gaskets
• Hardware kits



Applications

Subaru Impreza STi 2008 - 2015
Subaru Impreza WRX/STi 02-07 GDA/GDB
Subaru Impreza Classic 98-01 GC8
Subaru Forester 05-07 SG5
