Tial 004724 Tial- QRJ.3, Blow Off Valve 3 psi Spring Silver 0L2J3
SKU TIL-004724
Original price
$ 220.00
-
Original price
$ 220.00
Original price
$ 220.00
$ 220.00
-
$ 220.00
Current price
$ 220.00

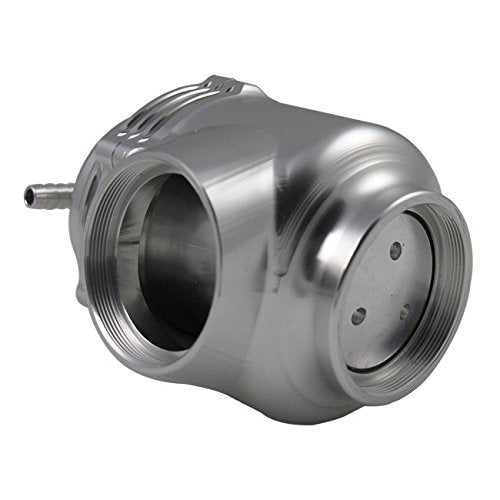

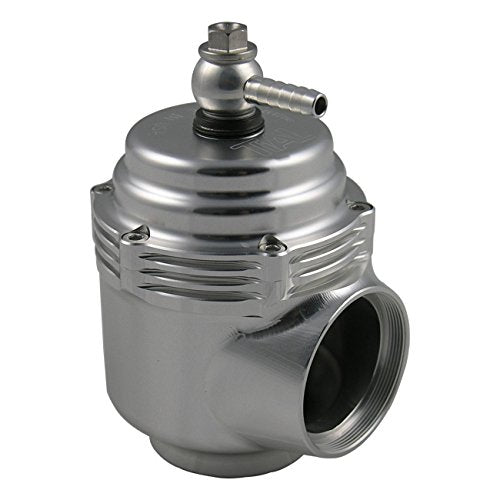

The TiAL QRJ Boost Control Valve is TiAL's latest take on a compact, high flowing Blow Off Valve. The QRJ is primarily designed to act as a Recirculating Blow Off Valve or Diverter Valve, but a diffuser outlet port flange is available for Vent-to-Atmosphere setups. Choose between a 3 psi spring for turbocharged applications, or a 1.5 psi spring for supercharged applications. This valve offers installers the unique options of mixing and matching all different types of inlet and outlet ports for a multitude of configurations. Choose from the 38mm V-Band Flange, 1.00" Bosch Style Hose Fitting, 1.14" GT-R Style Hose Fitting, or the 1.50" EVO/DSM Style Hose Fitting. Each of these can be used on either the inlet or outlet ports of the QRJ Valve. There is also the option of utilizing a V-Band Adapter Flange for mounting this valve onto existing Q/QR Blow Off Valves inlet pipes.
You can use this valve on both turbocharged and supercharged applications with the included 3 psi green spring. This spring has been tuned to allow the QRJ to achieve the fastest response possible. Custom springs options are available for other configurations. The body and all internal components are CNC-machined from 6061 aluminum. Anodized exterior finishes are available in Black, Blue, Silver, Red, or Purple. Inside, the valve seat seal utilizes a Viton O-ring clamped in place to prevent it from sticking to the seat and pulling out. The high performance diaphragm offers long cycle life, zero leakage and zero breakaway friction for fast and reliable boost control. The valve stem and guide come Teflon lubricated and hard anodize coated for greater wear resistance. This valve utilizes the same oversized hose barb connection as other TiAL valves, providing quicker actuator response.
Note: These valves do not include the flanges or clamps, those must be purchased separately for the configuration you want to run.
You can use this valve on both turbocharged and supercharged applications with the included 3 psi green spring. This spring has been tuned to allow the QRJ to achieve the fastest response possible. Custom springs options are available for other configurations. The body and all internal components are CNC-machined from 6061 aluminum. Anodized exterior finishes are available in Black, Blue, Silver, Red, or Purple. Inside, the valve seat seal utilizes a Viton O-ring clamped in place to prevent it from sticking to the seat and pulling out. The high performance diaphragm offers long cycle life, zero leakage and zero breakaway friction for fast and reliable boost control. The valve stem and guide come Teflon lubricated and hard anodize coated for greater wear resistance. This valve utilizes the same oversized hose barb connection as other TiAL valves, providing quicker actuator response.
Note: These valves do not include the flanges or clamps, those must be purchased separately for the configuration you want to run.
