Racelogic Video VBOX Pro 10 Hz

Video VBOX Pro 10 Hz — Motorsport Coaching and Data

This professional in-car logger synchronizes onboard video with GPS data and configurable overlays. It is suited to driving schools, coaches and race teams wanting to compare driving technique and lap sessions.

• 10 Hz GNSS logging for repeatable session analysis.
• Two- or four-camera configurations available through the options on this page.
• Vehicle CAN data: compatible configurations support 32 logging channels when correctly installed.

For higher-rate GNSS recording, compare the Video VBOX Pro 20 Hz. For dual-camera 1080p video, see the VBOX Video HD2 Track Package.

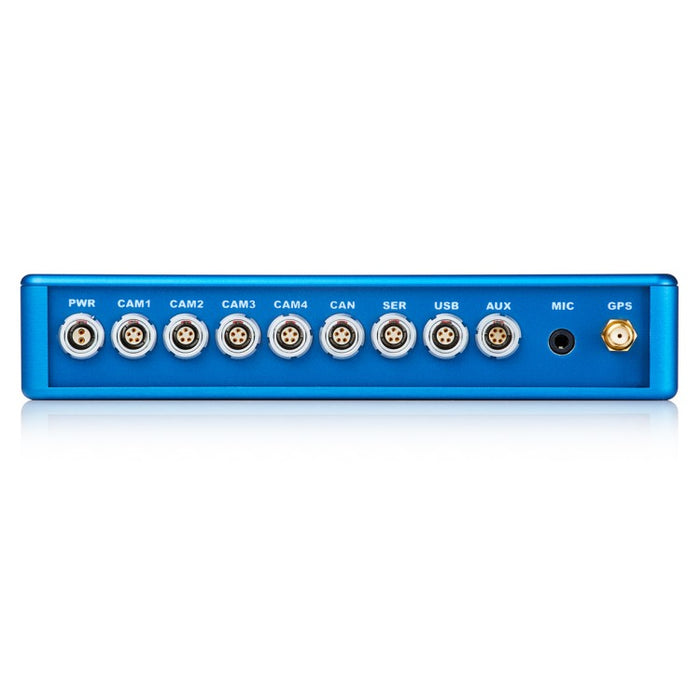

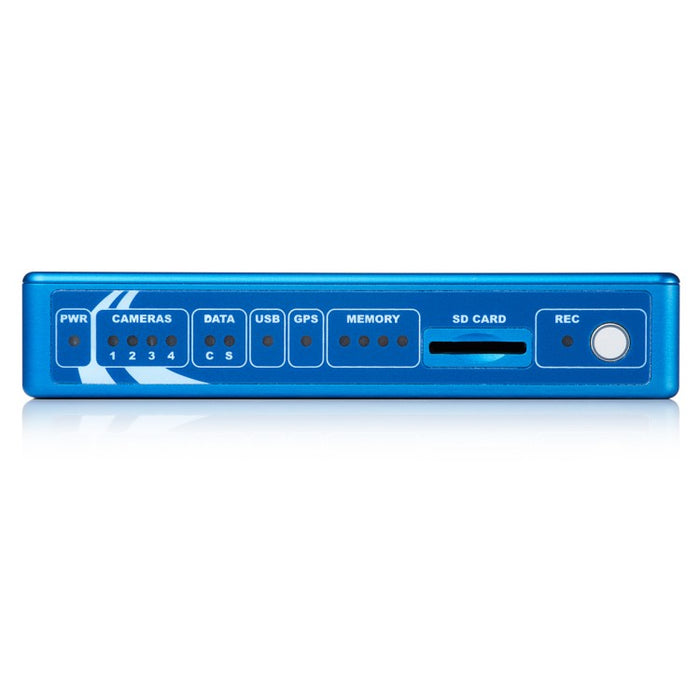

Video VBOX Pro is a high-end in-car video system aimed primarily at motorsport professionals and driving schools. Video VBOX Pro is housed in an aluminium enclosure. It combines a 10 Hz VBOX GPS data logger with a 2 or 4 camera video system.

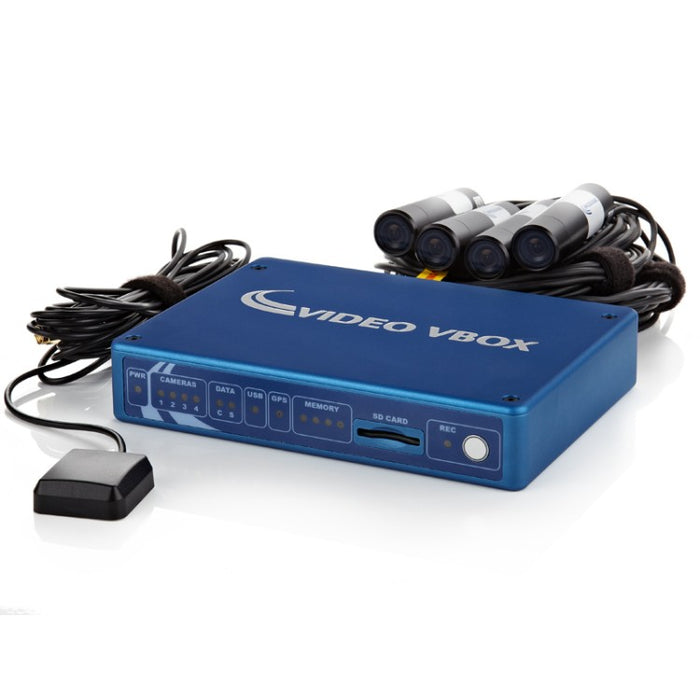

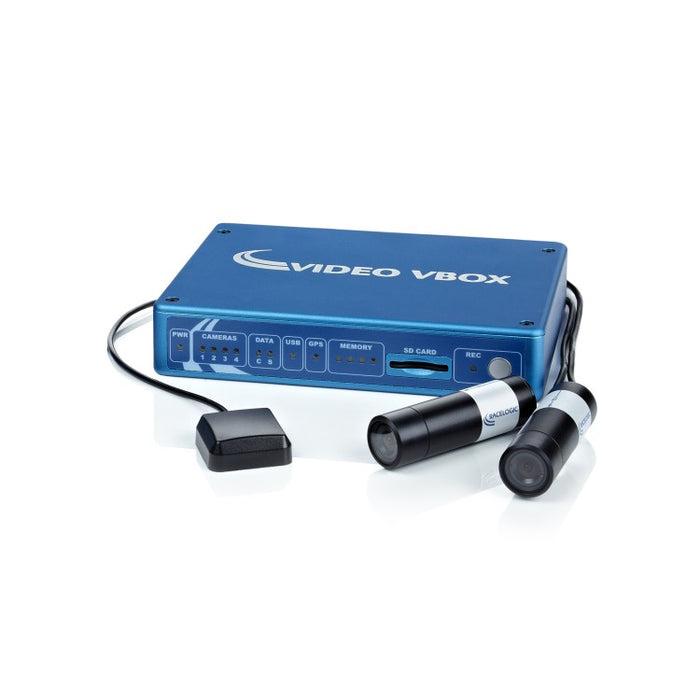

Package Contents:

• Video VBOX Pro 10 Hz GPS Data Logger and Video Recorder with Graphic Overlay and 32 CAN channel logging
• Two Sony HQ1 Super HAD ExView 550/580L NTSC cameras
• Two camera mounts with windscreen suction cups
• Forward facing camera ring
• GPS antenna
• Two microphones
• One microphone splitter cable
• In-car power supply
• Mains power supply
• 8 GB SD card containing software and user guide
• USB cable for connection to PC
• Large Video VBOX carry case

Options (please choose):

• 2 cameras and 32 CAN channel logging
• 4 cameras and 32 CAN channel logging
