OMNI Power 3 Bar MAP Sensor - Subaru WRX STI 04-21 & WRX 06-07 - Red (Free 2-Day Shipping Upgrade)
FREE Upgrade to 2-Day Shipping
The OMNI Power 3 Bar MAP Sensor (OMNI-MAP-STI-3BR) provides manifold pressure data for compatible Subaru WRX STI and WRX engine-management setups. This listing shows the red sensor housing and offers a 3 bar absolute-pressure range for an ECU configured with the correct sensor scaling.
Subaru applications
- 2004-2021 Subaru WRX STI - US-market EJ turbo applications
- 2006-2007 Subaru WRX - turbo applications
Fitment check: Confirm the original sensor connector, mounting and installed sensor revision match this part before ordering. For engine swaps, imported vehicles or modified intake manifolds, check the installed hardware rather than relying on the vehicle name alone.
The WRX STI application is distinct from the non-STI WRX. This listing does not establish fitment for 2008-2014 WRX, 2015+ non-STI WRX or 2022+ WRX. For 2008-2014 WRX, review our separate OMNI Power MAP-SUP-3BR listing.
Manifold pressure measurement for your Subaru tune
A MAP sensor measures intake manifold pressure so a compatible ECU can use its signal when calculating fuel delivery and ignition timing. OMNI Power's silicon pressure element provides a linear 0-5V pressure signal with automatic temperature compensation.
The 3 bar rating measures absolute pressure, including atmospheric pressure. At standard sea-level atmospheric pressure, 3 bar absolute corresponds to approximately 28.8 psi above atmosphere. The sensor rating is a measurement range; your tuner must configure the ECU for the exact sensor installed.
Features and specifications
- Pressure rating: 3 bar manifold absolute pressure
- Output: Linear 0-5V pressure signal
- Temperature compensation: Automatic
- Operating temperature: -40°F to 260°F
- Response time: 1 millisecond from 10% to 90% of the pressure scale

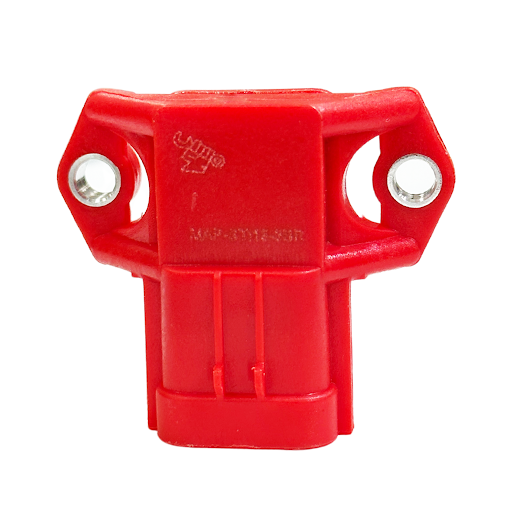

- Housing: Red, as shown in this listing
- Quality control: OMNI Power reports individual assembly, pressure testing and function checks in the USA
- Product part number: OMNI-MAP-STI-3BR
Installation and ECU calibration
ECU calibration is required. Confirm your ECU or tuning solution supports custom MAP sensor scaling and obtain calibration for the exact 3 bar sensor revision. Do not reuse 4 bar sensor settings. Physical installation alone does not configure the ECU for a different pressure range.
Have your tuner verify the pressure reading and sensor scaling before operating the vehicle under boost. For a naturally aspirated vehicle needing an original-specification replacement, confirm the correct sensor application before ordering.
Compare MAP sensors or browse our OMNI Power collection.
