OMNI Power 3 Bar MAP Sensor - K-Series | Acura RSX 02-06, Honda Civic Si EP3 02-05, Honda CR-V 02-06, Acura TSX 04-08, Subaru BRZ 13-20, Scion FR-S 13-16 & Toyota 86 17-20

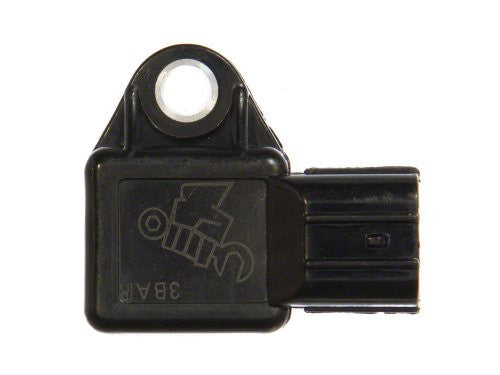

The OMNI Power MAP-K-3BR 3 Bar MAP Sensor provides manifold pressure data for compatible Honda/Acura K-Series and first-generation Subaru BRZ, Scion FR-S and Toyota 86 applications. Its linear 0-5V output supports engine-management setups configured for this 3 bar sensor.
Pressure sensing for your engine-management setup
A MAP sensor measures intake manifold pressure so the ECU can use that information when calculating fuel delivery and ignition timing. OMNI Power's silicon pressure sensor provides automatic temperature compensation to account for changes in operating temperature.
The design uses bipolar operational-amplifier circuitry and thin-film resistor networks. The 3 bar rating refers to absolute pressure, including atmospheric pressure.
Honda and Acura applications
- 2002-2006 Acura RSX Base and Type-S - K-Series
- 2002-2005 Honda Civic Si EP3 - US models
- 2002-2006 Honda CR-V - K-Series
- 2004-2008 Acura TSX - K-Series
Subaru, Scion and Toyota applications
- 2013-2020 Subaru BRZ - first-generation 2.0L FA20
- 2013-2016 Scion FR-S - 2.0L FA20
- 2017-2020 Toyota 86 - first-generation 2.0L FA20
Fitment check: Confirm the original sensor connector, mounting and sensor revision match the MAP-K-3BR before ordering. For engine swaps or modified vehicles, verify the installed sensor and engine-management hardware rather than relying on the vehicle name alone. Confirm compatibility with your ECU and, where applicable, transmission controller.
Features and specifications
- Sensor rating: 3 bar manifold absolute pressure
- Output: Linear 0-5V pressure signal
- Temperature compensation: Automatic
- Operating temperature: -40°F to 260°F
- Response time: 1 millisecond from 10% to 90% of the pressure scale
- Quality control: OMNI Power reports individual assembly, pressure testing and function checks in the USA
- Manufacturer part number: MAP-K-3BR
Installation and ECU calibration
ECU calibration is required. Confirm your ECU or tuning solution supports custom MAP sensor scaling, and use calibration specific to the MAP-K-3BR 3 bar sensor. Physical installation does not configure the ECU for a different pressure rating. Have your tuner verify sensor scaling before operating the vehicle under boost.
