BMW F97 X3 M / F98 X4 M VANTA GOLD™ Midpipe

Yonristic Performance

The VANTA GOLD™ Midpipe for the BMW F97 X3 M and F98 X4 M brings the core sound technology of our full VANTA GOLD™ system into a focused midpipe package. Developed around the S58 platform, it replaces the factory mid-section with a dual 3-inch architecture, our proprietary AURUM FLOW CORE™, and two strategically positioned resonators. The result is improved flow capacity, reduced low-RPM harshness, and a cleaner, more exotic S58 sound that remains deep down low and increasingly sharp and controlled as RPM rises.

Exhaust Midpipe Details

Developed specifically for the F97 X3 M and F98 X4 M, the VANTA GOLD™ Midpipe is designed for owners who want a meaningful change in sound and flow without replacing the complete rear exhaust system. The factory mid-section is replaced with a larger dual 3-inch configuration, increasing flow capacity over the approximately 2.75-inch factory layout and providing additional headroom for tuned and higher-output S58 applications.

Rather than simply increasing pipe diameter and volume, the complete midpipe has been engineered as an acoustic system. At its center is the AURUM FLOW CORE™, the same proprietary crossover technology used throughout our S58 VANTA GOLD™ lineup. Produced through advanced 3D printing, the core uses sculpted internal geometry to control how exhaust pulses from both sides of the engine converge and interact. This allows the system to manage pressure-wave behavior more progressively than a conventional fabricated X-pipe.

The purpose of the AURUM FLOW CORE™ is not simply to mix exhaust gases. It is designed to tighten and structure the sound. As the S58 moves into higher engine speeds and exhaust velocity increases, traditional open crossover designs can introduce metallic rasp, scattered harmonics, and a sound that begins to break apart under load. The Flow Core helps maintain a more unified exhaust signature, allowing the desirable frequencies to develop while controlling the harshness that commonly accompanies a more free-flowing S58 exhaust.

The core is finished in our signature VANTA GOLD™ heat-resistant ceramic coating, providing additional thermal protection while giving the midpipe its distinctive identity. The advanced manufacturing and finishing process also makes the AURUM FLOW CORE™ one of the most technically demanding components within the system.

For the X3 M and X4 M platform, the Flow Core is paired with two dedicated resonators positioned further downstream. These resonators have a separate role from the crossover itself. While the AURUM FLOW CORE™ manages pulse interaction and upper-frequency structure, the resonators are tuned to reduce lower-frequency air rattle, harshness, and unwanted resonance that can occur at lower RPM and during changes in engine load.

This combination allows the VANTA GOLD™ Midpipe to remain deeper and more refined during everyday driving while still producing the sharper, cleaner, and more exotic high-RPM sound associated with the VANTA GOLD™ series.

When installed with the factory rear exhaust, the vehicle retains its original rear muffler architecture and factory valve functionality. This makes the VANTA GOLD™ Midpipe an ideal upgrade for customers who want a significantly more expressive S58 sound while maintaining the original rear section and OEM driving behavior.

The VANTA GOLD™ Sound

The sound philosophy is shared with our G8X M3/M4 and G87 M2 VANTA GOLD™ systems: deep where it should be deep, exotic where the S58 begins to come alive, and controlled throughout the entire rev range.

At lower engine speeds, the dual resonators help remove unwanted rattle and harsh low-frequency resonance, leaving a deeper and more substantial exhaust tone. Through the mid-range, the larger dual 3-inch piping increases presence and allows the engine to sound noticeably more aggressive.

At higher RPM, the AURUM FLOW CORE™ becomes particularly important. Rather than allowing the exhaust note to become increasingly metallic or scattered, the crossover architecture helps hold the sound together and create a cleaner, sharper upper register.

The objective is not simply more volume. It is a more complete S58 sound.

Designed to Work with the Factory Axle-Back

The VANTA GOLD™ Midpipe allows owners to retain the factory X3 M / X4 M rear exhaust and valve system. Factory valve operation remains available through the vehicle's original driving modes, preserving the dual-personality nature of the M exhaust.

With the factory valves closed, the rear muffler continues to provide additional refinement for everyday driving and highway use. With the valves open, the freer-flowing VANTA GOLD™ mid-section allows significantly more of the S58's natural sound character to come through.

For owners seeking the complete transformation, the VANTA GOLD™ Midpipe can also serve as the foundation for our full VANTA GOLD™ exhaust configuration with the dedicated rear X-pipe axle-back system.

Performance & Flow

Moving to a dual 3-inch midpipe architecture provides greater exhaust flow capacity than the factory configuration and reduces downstream restriction. This is particularly beneficial on tuned vehicles where increased boost and airflow place greater demands on the exhaust system.

On an otherwise stock vehicle, the primary benefit is improved response, sound, and reduced restriction. On higher-output S58 builds, the larger piping provides additional flow headroom as power levels increase.

For customers pursuing a complete performance package, the midpipe can be paired with Yonristic Performance downpipes in MaxFlow free-flow, 200-cell, or 400-cell configurations, depending on the intended application.

Key Specifications

Vehicle Fitment:
BMW F97 X3 M / X3 M Competition
BMW F98 X4 M / X4 M Competition

Engine:
S58 3.0L Twin-Turbo Inline-6

Product Type:
Performance midpipe / center exhaust section

Pipe Diameter:
Dual 3-inch

Center Technology:
AURUM FLOW CORE™

Flow Core Construction:
Advanced 3D-printed internal crossover architecture

Thermal Treatment:
Signature VANTA GOLD™ heat-resistant coating

Resonance Control:
Dual dedicated resonators

Rear Exhaust Compatibility:
Designed to retain the factory X3 M / X4 M axle-back and OEM valve operation

Downpipe Compatibility:
MaxFlow free-flow
200-cell high-flow
400-cell high-flow

Construction:
Precision formed and TIG welded

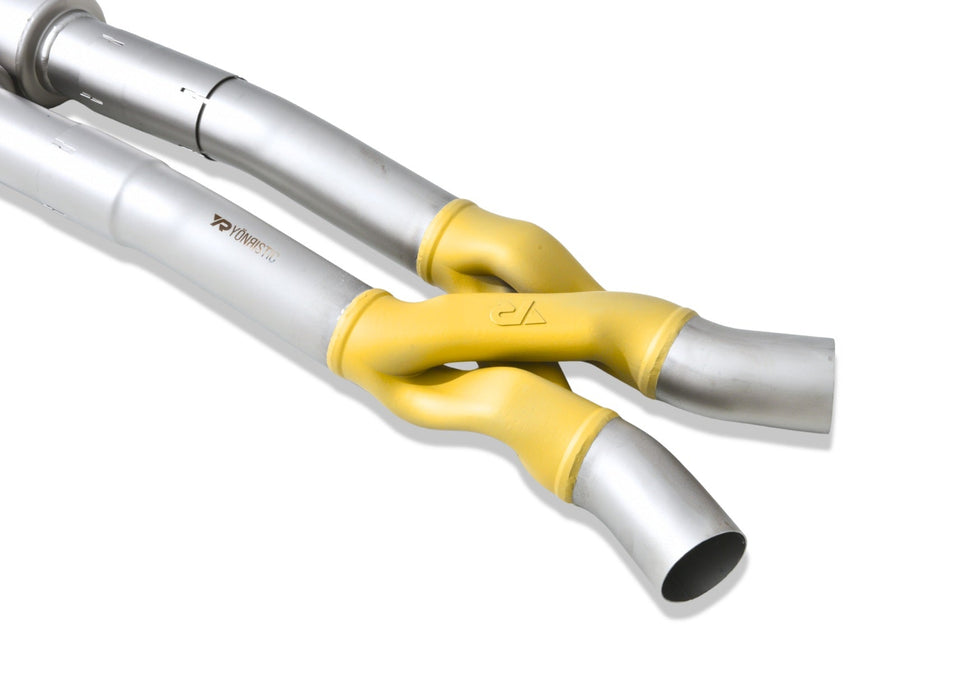

AURUM FLOW CORE™ — More Than an X-Pipe

A conventional X-pipe provides a point for the two exhaust paths to interact. The AURUM FLOW CORE™ takes this concept considerably further. Its 3D-printed internal geometry controls how those pulses converge, helping stabilize both pressure behavior and harmonic structure. For the S58, the difference is heard most clearly at higher RPM, where the exhaust stays tighter, cleaner, and more cohesive instead of turning increasingly metallic or raspy.

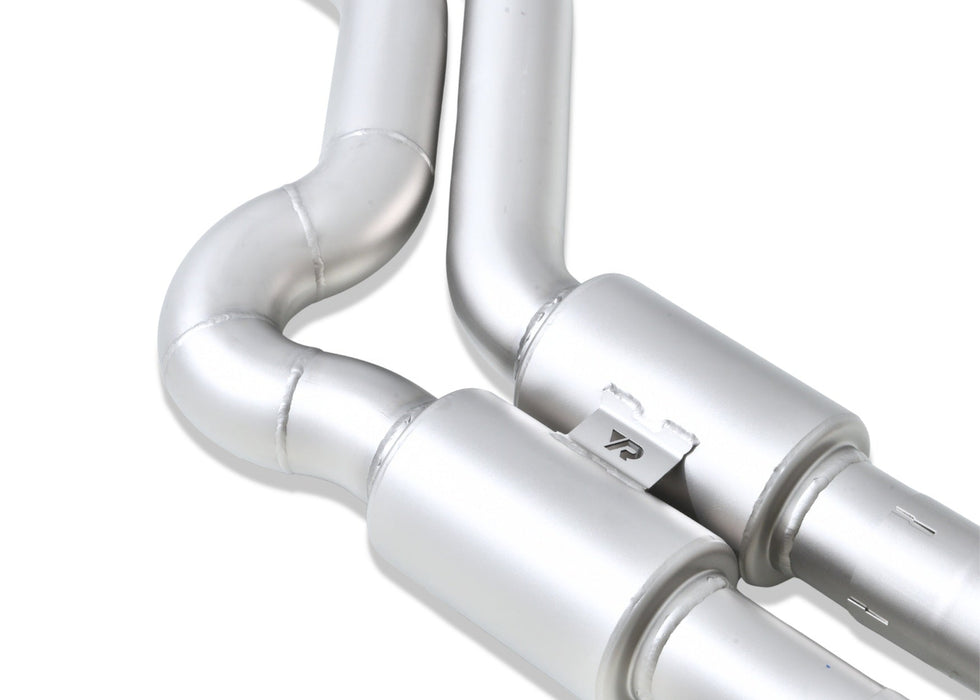

Dual 3-Inch Flow with Targeted Resonance Control

Increasing pipe diameter can improve flow, but it can also amplify undesirable frequencies if the rest of the system is not designed around it. That is why the F97/F98 VANTA GOLD™ Midpipe combines its dual 3-inch architecture with two dedicated resonators. They specifically address the lower-frequency air rattle and resonance common to freer-flowing S58 setups, allowing the system to gain volume and performance potential without sacrificing refinement.

The VANTA GOLD™ Character Without Replacing the Rear Exhaust

For customers who prefer to retain the original BMW rear muffler and valve functionality, the VANTA GOLD™ Midpipe delivers the most important acoustic and flow technologies from the complete system in a standalone upgrade. The AURUM FLOW CORE™, larger piping, and dual resonators fundamentally reshape the sound before it reaches the factory axle-back—giving the X3 M and X4 M a deeper low end and a cleaner, more exotic high-RPM character while retaining OEM valve operation.
