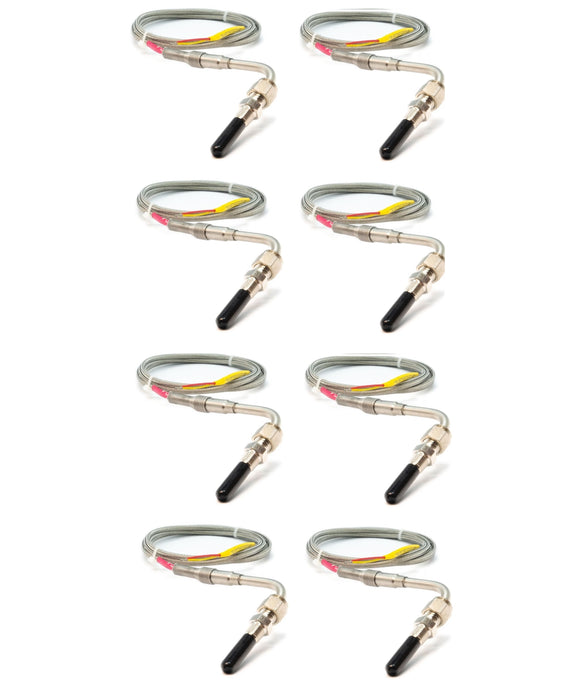

Link Engine Management 8 x Exhaust Gas Temperature Probe Bundle (EGTs)

Link Engine Management 8 x Exhaust Gas Temperature Probe Bundle (EGTs)

SKU LEM-101-0146 - 8Bundle
by Link Engine Management
$ 1,100.00 - $ 1,100.00
$ 1,100.00
$ 1,100.00 - $ 1,100.00
$ 1,100.00

Details

Extreme Duty Fast Response EGT Temperature Probe.

Bundle includes 8 x Probes.

  • Type K thermocouple probe
  • Exposed sensing junction for fastest response
  • Includes 316 SS adjustable compression fitting
  • Stainless steel protected wires
  • Designed for extreme engine test & racing environments

Specifications

Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C)
Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS
*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value
Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge. 6ft / 1.8m in length.
Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread

Wiring:

+ = Yellow

– = Red
