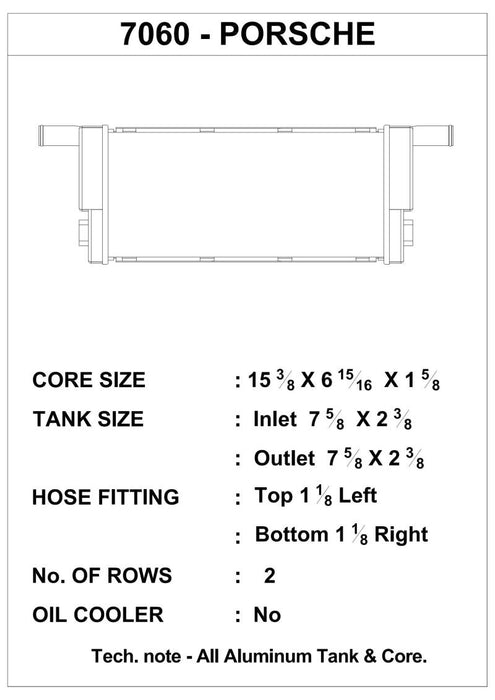

CSF Porsche Cayman/Boxster/Carrera (991/981) Auxiliary Center Radiator

SKU CSF7060
by CSF
Save $ 50.00 Save $ 50.00
Original price $ 499.00
Original price $ 499.00 - Original price $ 499.00
Original price $ 499.00
Current price
$ 449.00
$ 449.00 - $ 449.00
Current price
$ 449.00
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 981 Cayman/Boxster running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year Make Model Submodel
2017-2022 Porsche 718 Boxster Base
2018-2019 Porsche 718 Boxster GTS
2017-2022 Porsche 718 Boxster S
2020-2022 Porsche 718 Boxster T
2017-2022 Porsche 718 Cayman Base
2018-2019 Porsche 718 Cayman GTS
2017-2022 Porsche 718 Cayman S
2020-2022 Porsche 718 Cayman T
2012-2019 Porsche 911 Carrera
2013-2019 Porsche 911 Carrera 4
2015-2016,2018-2019 Porsche 911 Carrera 4 GTS
2013-2019 Porsche 911 Carrera 4S
2015-2016,2018-2019 Porsche 911 Carrera GTS
2012-2019 Porsche 911 Carrera S
2018-2019 Porsche 911 Carrera T
2014-2019 Porsche 911 Targa 4
2016,2018-2019 Porsche 911 Targa 4 GTS
2014-2019 Porsche 911 Targa 4S
2012-2016 Porsche Boxster Base
2016 Porsche Boxster Black Edition
2015-2016 Porsche Boxster GTS
2012-2016 Porsche Boxster S
2012 Porsche Boxster S Black Edition
2012 Porsche Boxster Spyder
2014-2016 Porsche Cayman Base
2016 Porsche Cayman Black Edition
2015-2016 Porsche Cayman GTS
2014-2016 Porsche Cayman S
